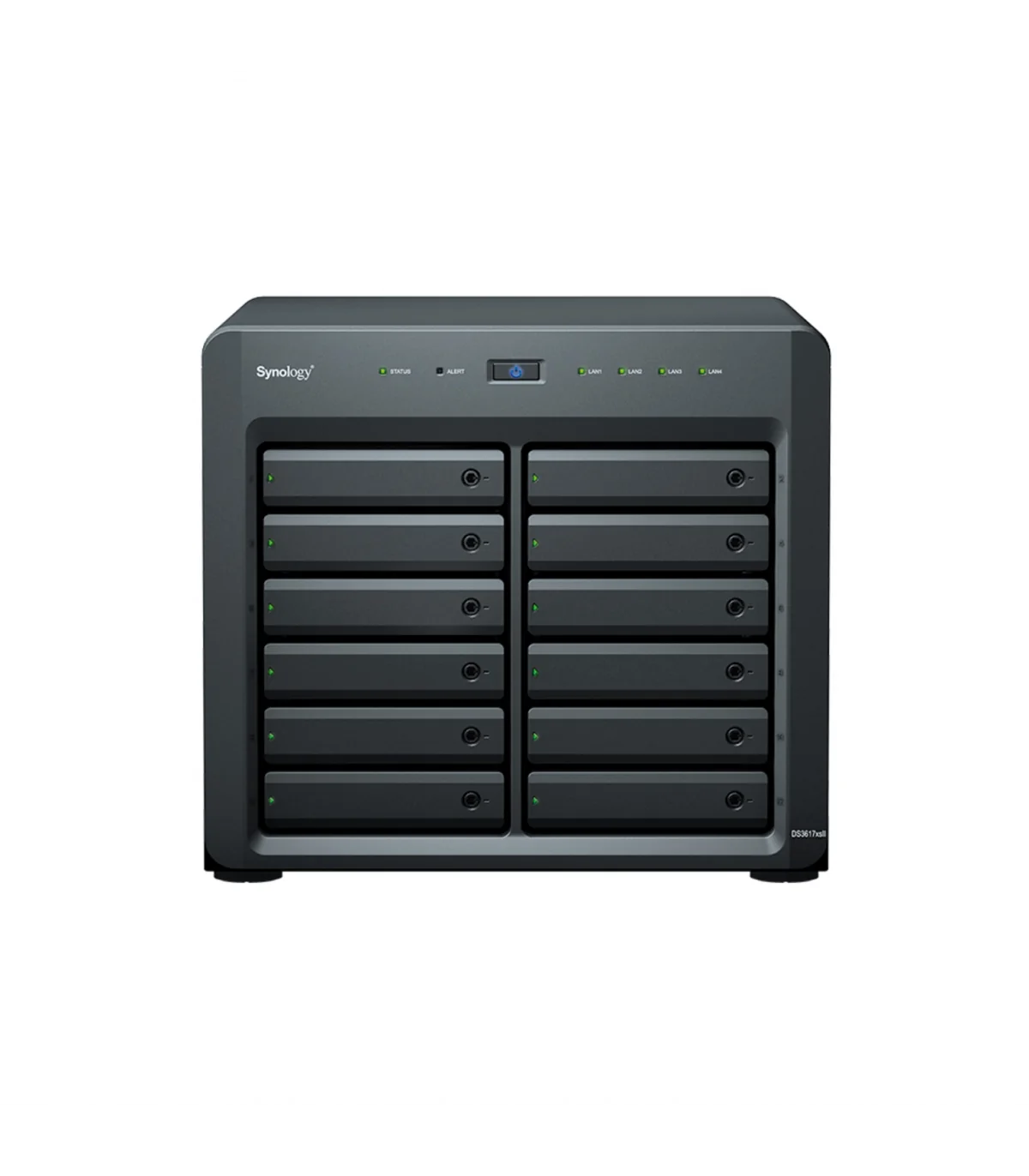

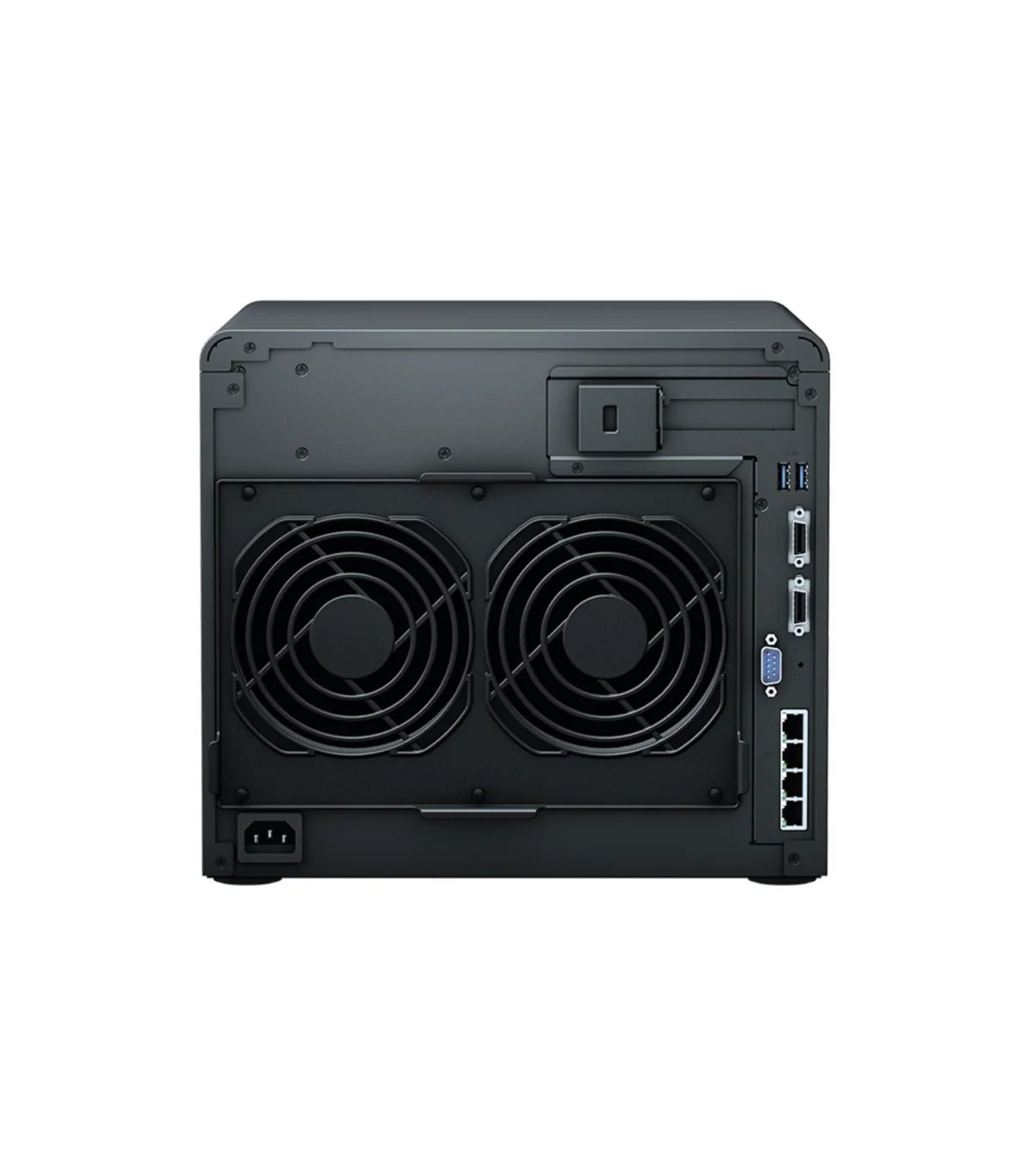

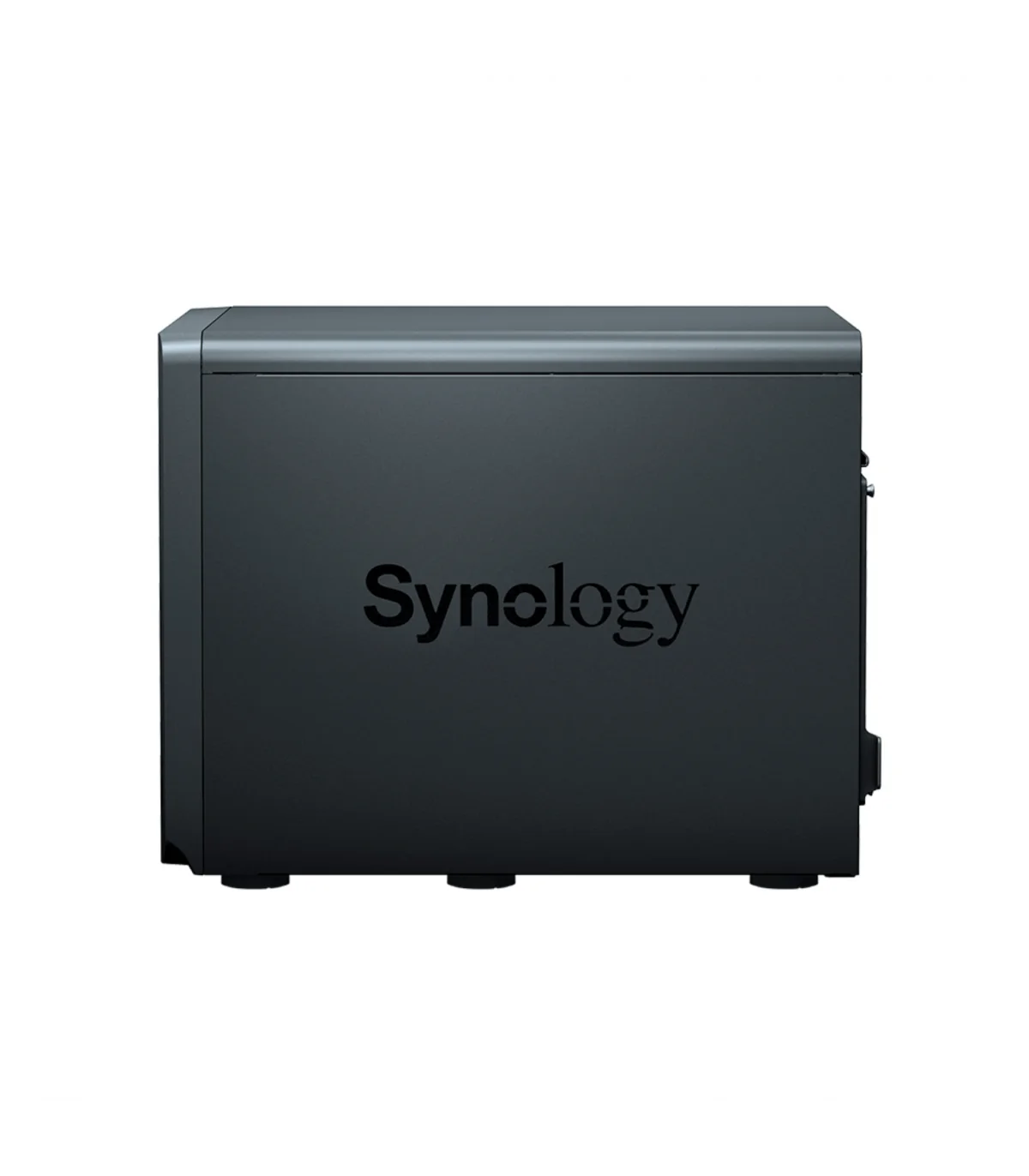

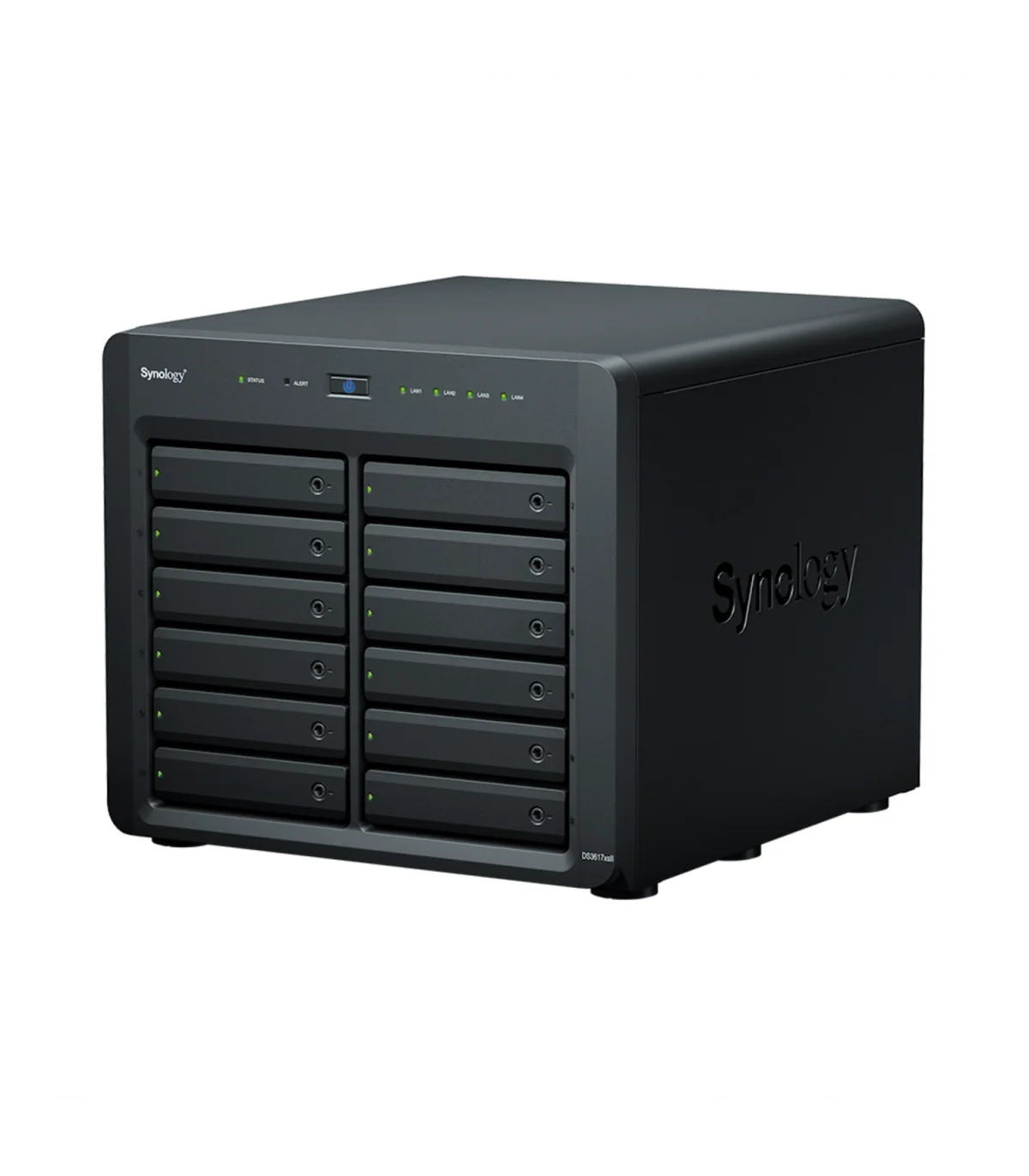

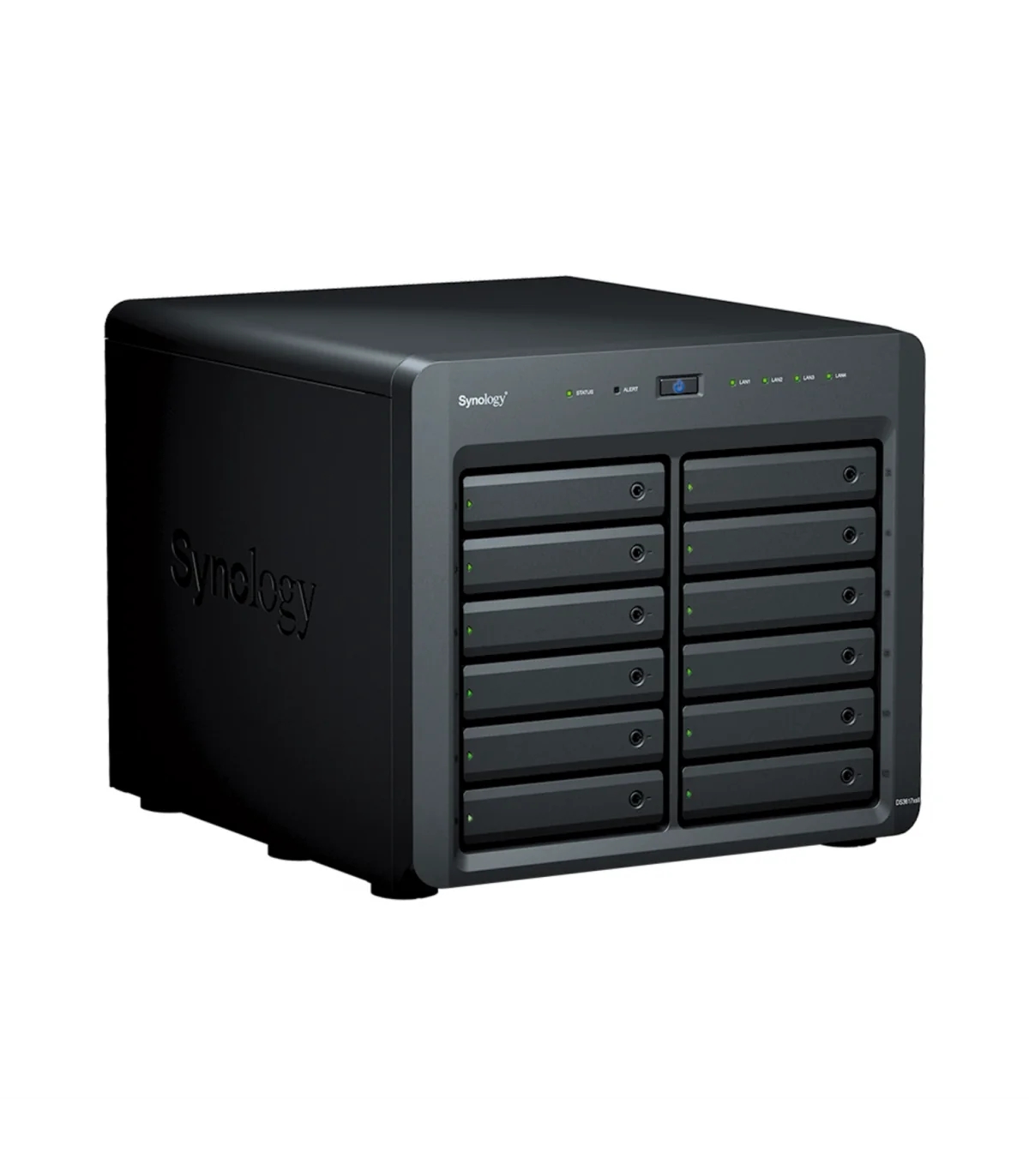

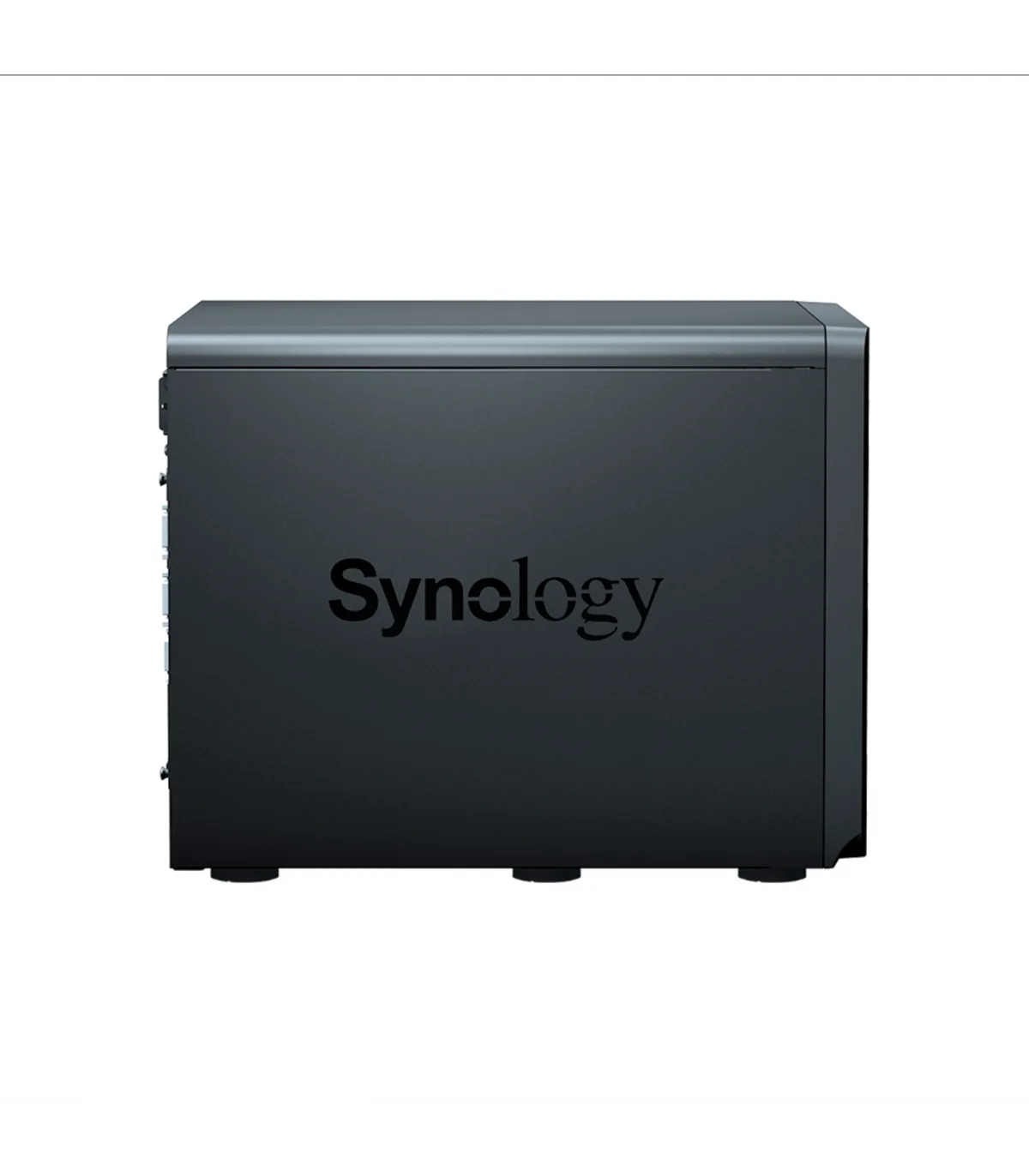

Synology DiskStation DS3617xsII

Form Factor: Tower
CPU: Intel Xeon D-1527/64-bit/4-core 2.2 (base) / 2.7 (turbo) GHz
Memory: 16 GB DDR4 ECC SODIMM; Maximum Memory Capacity: 48 GB (16+16 GB x 2)
Drive Bays: 12 (HDD not included )
Maximum Drive Bays with Expansion Unit: 36 (Expansion Unit: DX1215/DX1215II x 2)
Hot swappable Drive: Yes
External Ports: RJ-45 1GbE LAN X 4; USB 3.2 Gen 1 X 2, Expansion Port X 2
PCIe Expansion: 1 x Gen3 x8 slot (x8 link)
Maximum IP cam (License required): 75 (including 2 Free License)
Warranty: 5 years

Bạn cũng có thể thích

Chi tiết sản phẩm

Mã hàng DS3617xsII

Chi tiết

Quy mô sử dụng:: Doanh nghiệp lớn
Gia đình/Cá nhân
VP vừa & nhỏ

Tìm theo HDD:: NAS 12 HDD

Hình dạng:: Tower

Mã hàng cụ thể

upc: 100000022528

ean13: 8930000022523

DS3617xsII Hardware


CPU
CPU Model	Intel Xeon D-1527
CPU Quantity	1
CPU Architecture	64-bit
CPU Frequency	4-core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory	16 GB DDR4 ECC SODIMM
Memory Module Pre-installed	16 GB (8 GB x 2)
Total Memory Slots	4
Maximum Memory Capacity	48 GB (16 GB + 16 GB x 2)
Notes	Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays	12
Maximum Drive Bays with Expansion Unit	36 (DX1215/DX1215II x 2)
Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
Maximum Single Volume Size*	200 TB (32 GB memory required) 108 TB
Hot Swappable Drive
Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).
External Ports
RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*	2
Expansion Port	2
Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion	1 x Gen3 x8 slot (x8 link)
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT*
Notes	exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth)	270 mm x 300 mm x 340 mm
Weight	9.8 kg
Others
System Fan	120 mm x 120 mm x 2 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level*	22.3 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter	550 W
AC Input Power Voltage	100 V to 240 V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	108.2 W (Access) 53.4 W (HDD Hibernation)
British Thermal Unit	368.96 BTU/hr (Access) 182.09 BTU/hr (HDD Hibernation)
Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature	5°C to 40°C (40°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification
FCC CE BSMI EAC KC VCCI RCM
Warranty
5 Years
Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories
DDR4 ECC SODIMM: D4ECSO-2666-16G Expansion Units: DX1215/DX1215II 3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5200 M.2 SSD Adapter Card: M2D18 25GbE Network Interface Card: E25G21-F2 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1 VisualStation: VS960HD/VS360HD Surveillance Device License Pack
Notes	All memory modules will operate at the maximum frequency specified by the CPU manufacturer. DS3617xsII with M2D18 can only support M.2 SATA SSD. M.2 NVMe/AHCI PCIe SSD is not supported.

Notes:

Model specifications are subject to change without prior notice.
The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
If usage requirements exceed the specifications above, please contact our regional partners for professional advice.

DS3617xsII Software

DSM Specifications
Storage Management
Maximum Internal Volume Number	128
SSD Read / Write Cache (White Paper)
SSD TRIM
RAID Group
Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
File Services
File Protocol	SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections	2,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	10,000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
Maximum Local User Accounts	16,000
Maximum Local Groups	512
Maximum Shared Folder	512
Maximum Shared Folder Sync Tasks	32
High Availability
Synology High Availability
Log Center
Syslog Events per Second	3,000
Virtualization
VMware vSphere with VAAI
Windows Server 2016
Windows Server 2019
Citrix Ready
OpenStack
General Specifications
Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Google Chrome Firefox Microsoft Edge Internet Explorer Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)

Central Management System

Synology Chat
Maximum Users	4,000
Notes	The number of concurrent HTTP connections for Synology Chat was configured to the maximum. For tested models with expandable memory, the maximum amount of RAM was installed.
Document Viewer

Download Station
Maximum Concurrent Download Tasks	80
exFAT Access (Optional)

iSCSI Manager
Maximum iSCSI Target Number	256
Maximum iSCSI LUN	512
iSCSI LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server
Free Email Accounts	5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users	450
Maximum Server Performance	3,363,000 emails per day, approx. 102GB
Notes	Models with more than 4 bays were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
Moments
Facial Recognition
Subject Recognition
Auto Color & Rotate
Moments Select
PetaSpace

Snapshot Replication
Maximum Snapshots per Shared Folder	1,024
Maximum of System Snapshots	65,536
Surveillance Station
Maximum IP cam (Licenses required)	75 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)	2250 FPS @ 720p (1280x720) 1050 FPS @ 1080p (1920x1080) 600 FPS @ 3M (2048x1536) 500 FPS @ 5M (2591x1944) 500 FPS @ 4K (3840x2160)
Total FPS (H.265)	2250 FPS @ 720p (1280x720) 2250 FPS @ 1080p (1920x1080) 2250 FPS @ 3M (2048x1536) 1875 FPS @ 5M (2591x1944) 975 FPS @ 4K (3840x2160)
Total FPS (MJPEG)	900 FPS @ 720p (1280x720) 450 FPS @ 1080p (1920x1080) 280 FPS @ 3M (2048x1536) 200 FPS @ 5M (2591x1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. The maximum channel number also includes devices installed on Virtual DSM. Total FPS may be affected by other services running at the same time (e.g., archive tasks performed by Archive Vault).
Synology Drive
Recommended Number of Hosted Files	50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Sync Clients	1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Maximum Users	2,900
Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station

Virtual Machine Manager
Recommended Virtual Machine Instances	8 (Learn more)
Recommended Virtual DSM Number (Licenses required)	8 (including 1 Free License)
Notes	The specifications vary depending on system configuration and memory size.
VPN Server
Maximum Connections	40

Notes:

Model specifications are subject to change without prior notice.
The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
